Overview
Track your vehicles in real time and use their location to make scheduling decisions based on location.

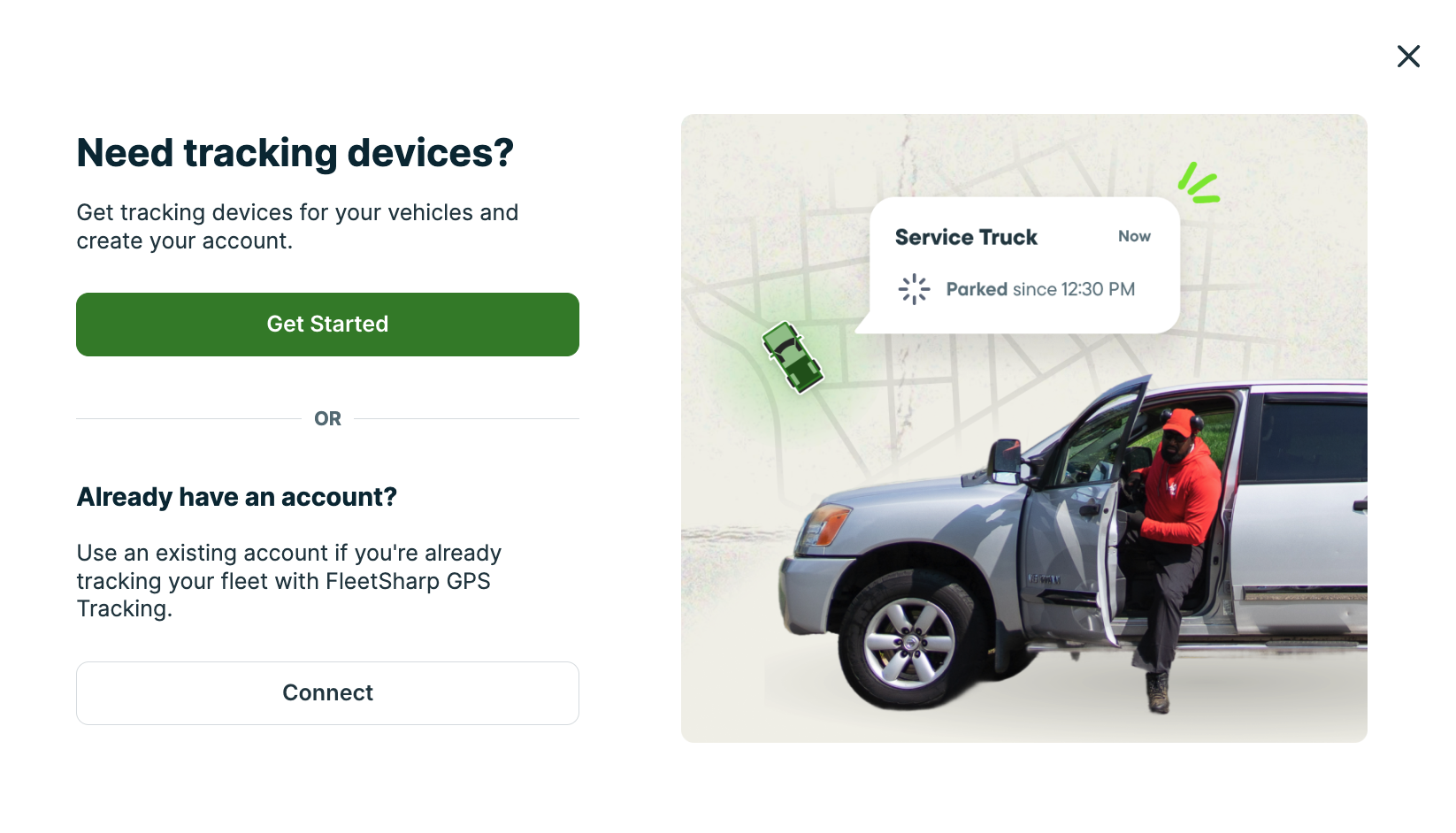

These are the devices that are available for the FleetSharp integration. These devices are available for purchase by going the App Marketplace. Click the Gear Icon > App Marketplace and select the FleetSharp card. On this page, select the option to Order Your Device. This article shows the kinds of devices that are available for purchase.
Pricing

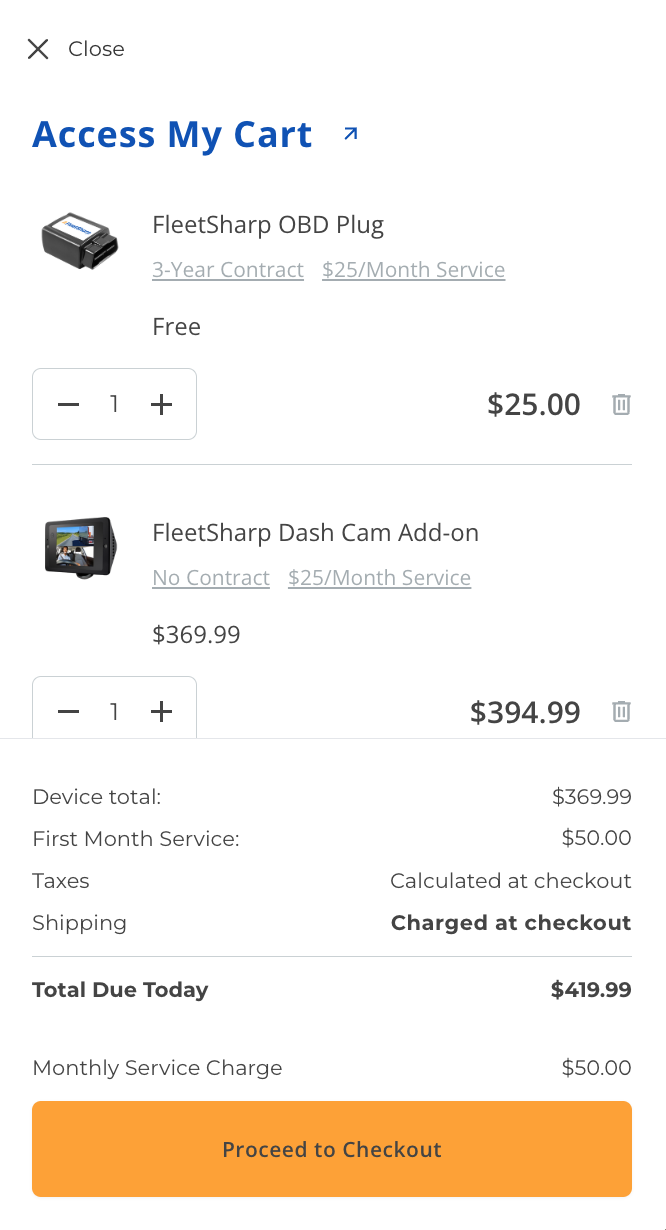

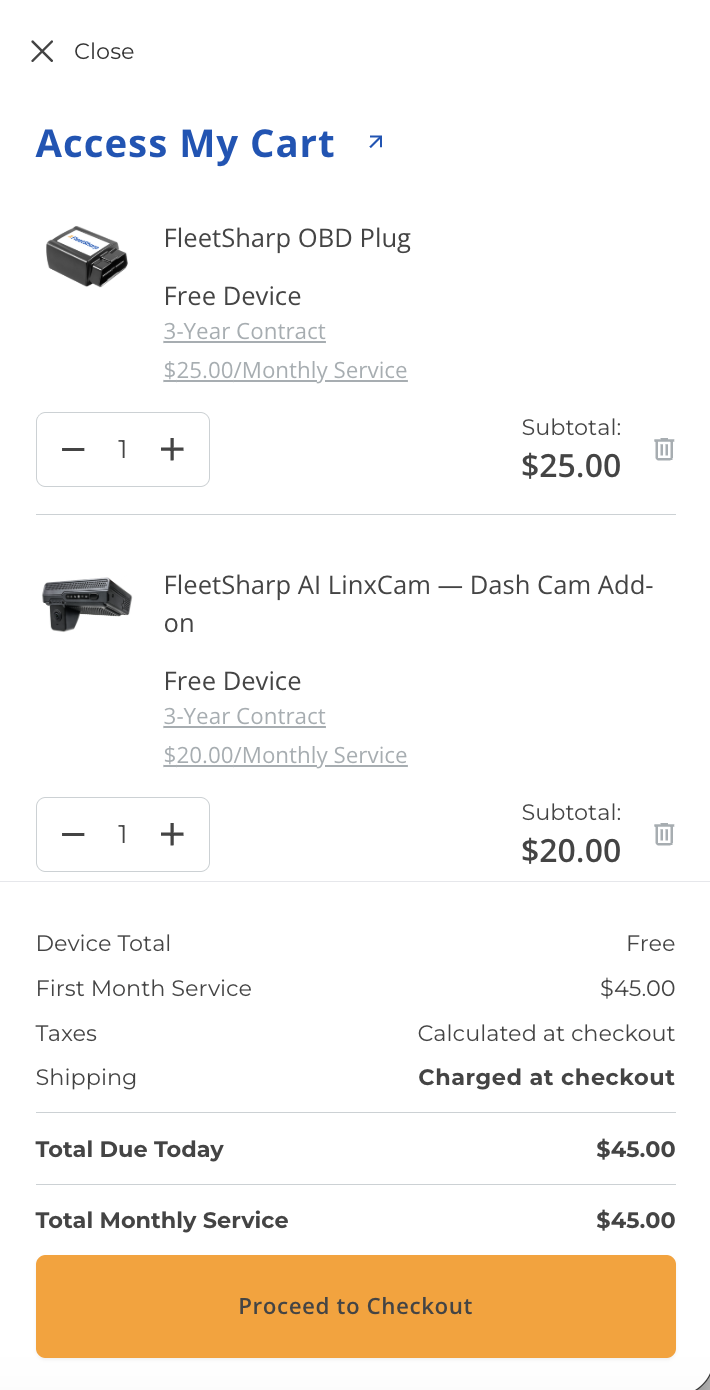

Pricing for these devices varies based on your contract with FleetSharp. You can preview the prices of the devices by going to the Gear Icon > App Marketplace and clicking the button for Order your Device. Based on the contract you select, your device might be discounted. In the vehicle tracker selection section of the order form, when you adjust the quantity of the devices you will see both the monthly service rate change as well as the price per device.
Note: All prices are in USD.

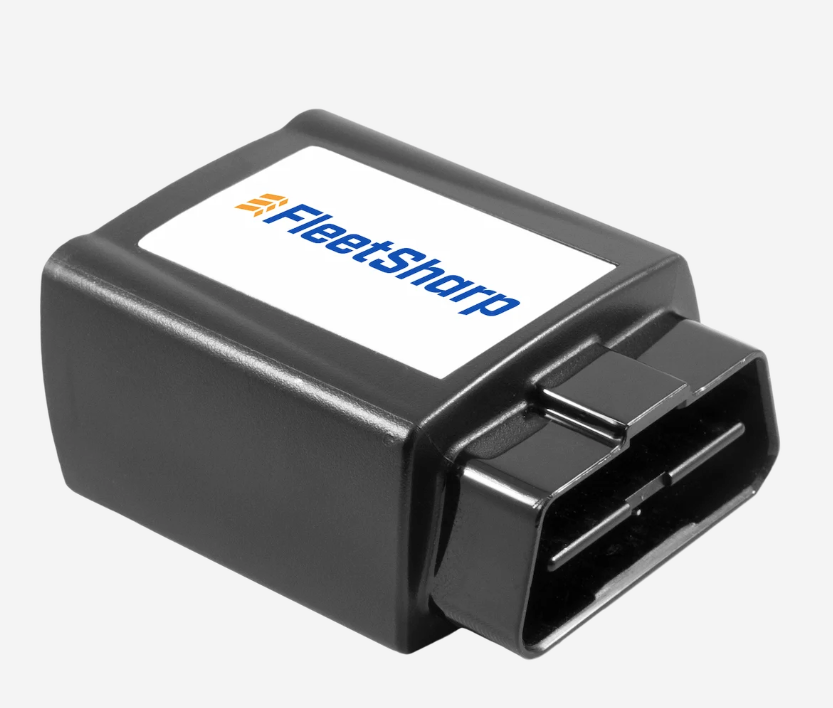

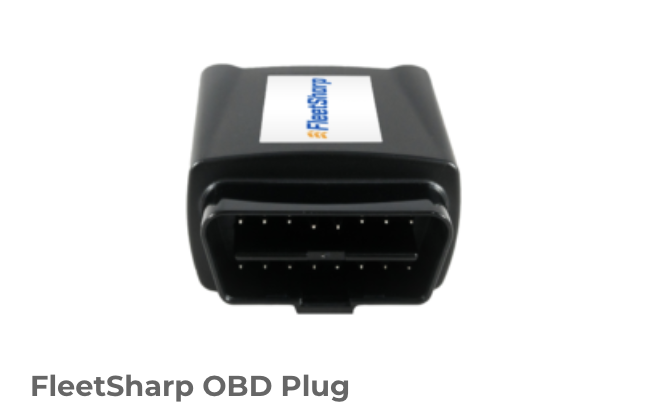

FleetSharp Plug-In Car Tracking Device
- Installs in seconds by plugging in to the OBDII port (download instructions PDF)
- Reports once a minute when vehicle is on, once an hour when off
- Not much bigger than a car key (2″ x 1.8″ x 1″)
- Power is supplied directly from the OBDII port
- Perfect for automobiles and light and medium duty trucks manufactured after 1996
- 3G cellular network

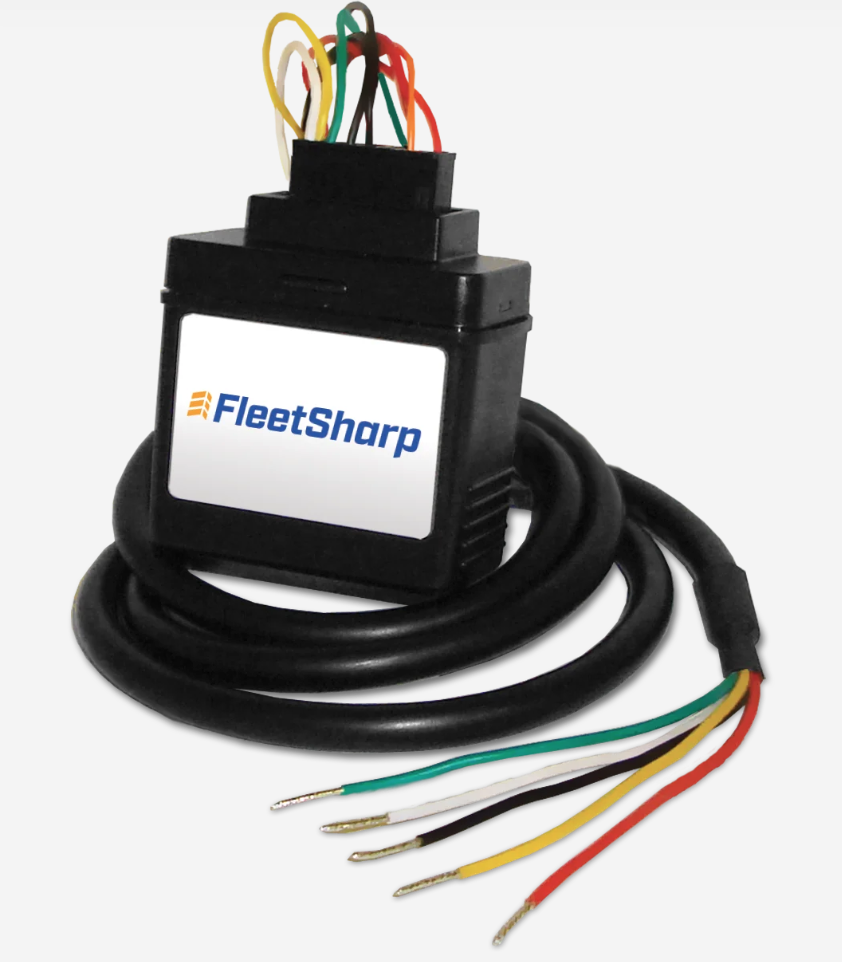

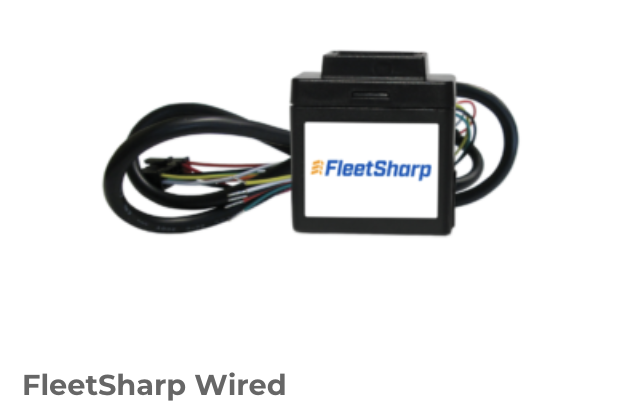

FleetSharp Wired
- 3-wire installation takes minutes (download instructions PDF)
- Reports once a minute when vehicle is on, once an hour when off
- Not much bigger than a car key (2″ x 1.8″ x 1″)
- Power is supplied directly from the vehicle
- Perfect for vehicles without an OBDII port, or when you need to prevent tampering
- 4G cellular network

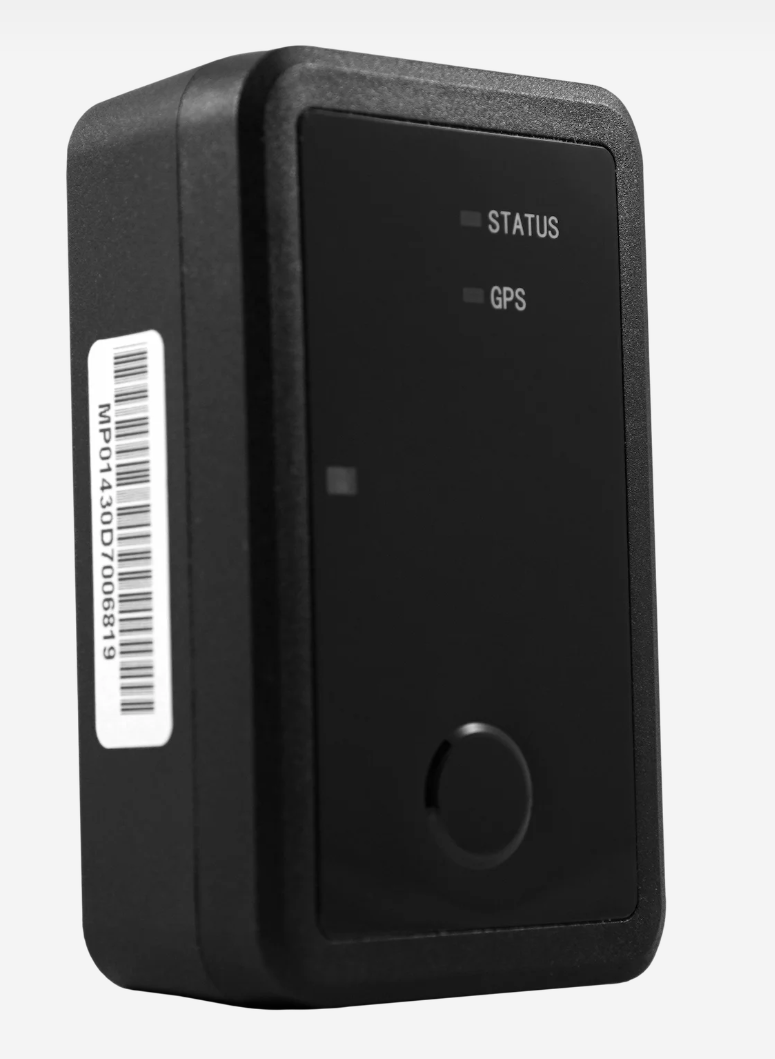

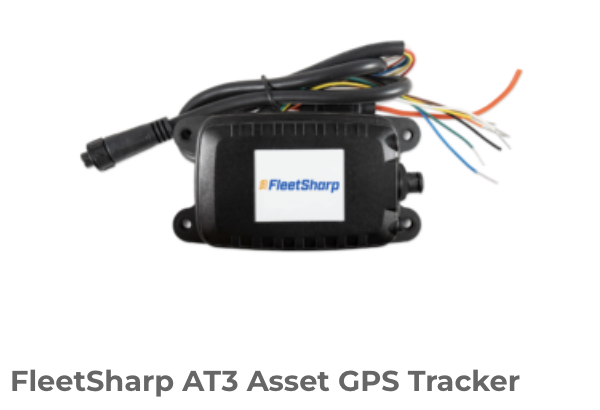

FleetSharp AT3 Equipment Tracker
- Fits on smaller equipment and assets
- Easy installation – three-wires
- Once-a-day reporting on battery / Reports every 10 minutes when powered and moving
- Weather-proof case (IP66 rated)
- Operating temperatures: -22°F to +167°F (-30°C to +75°C)
- Rechargeable battery with 3-month charge (Battery recharges when hooked to power using attached wire harness)
- Supports multiple input/output ports
- 3G cellular network
- Dimensions: 2.4″x1.8″x0.7″
- Weight: 4 ounces
- Includes 3-year unlimited warranty
Perfect for:
- Any type of equipment – powered or non-powered
- Compressors and generators
- Heavy and construction equipment
- Power packs or power units
- Light towers and power units
- Rental equipment
- Trailers

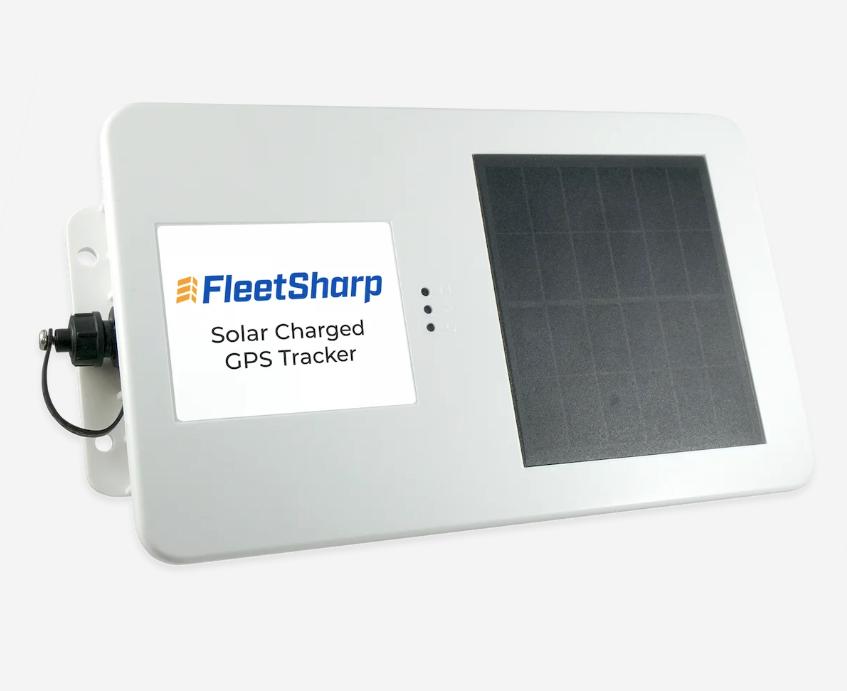

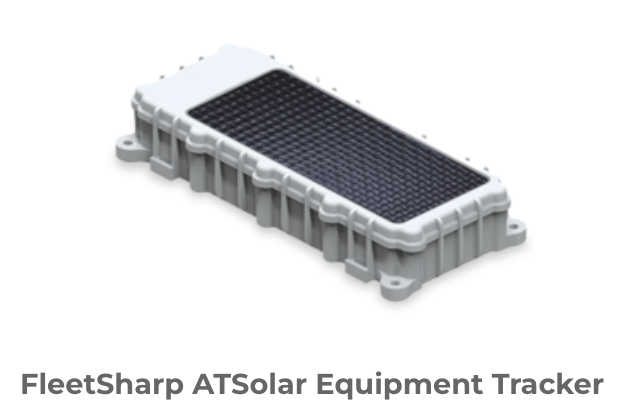

FleetSharp Solar Equipment Tracker
The FleetSharp ATSolar – Equipment Tracker gives you more frequent location updates for longer periods without the need to recharge the battery. It’s the longest lived tracker on the market today.
- Specifically designed for tracking non-powered equipment and assets
- Provides self-charging, solar-powered battery that lasts up to 10 years
- Supports multiple installation options
- Reports once every 3 hours when stationary / reports every 10 minutes when in motion
- Weather-proof case (IP67 rated) — perfect for use in marine or desert environments
- 4G cellular network
- Supports multiple input/output ports
- Operating temperatures: -22°F to +158°F (-30°C to +70°C)
- Dimensions: 8.5″x4.7″x1.1″
- Weight: 18 ounces
- 3-year unlimited warranty
Perfect for:
- Non-powered equipment
- Water tanks, air tanks, and compressors
- Trailers
- Cargo units
- Roll-offs
- Trailer chassis
- Waste disposal bins
- Containers
- Heavy and construction equipment
- Conex containers

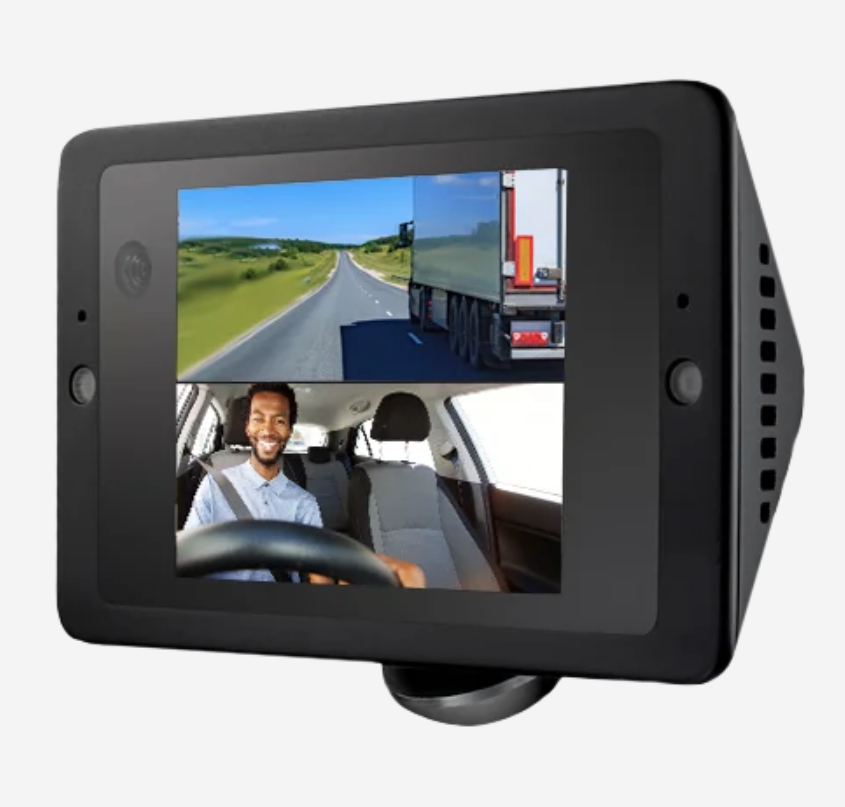

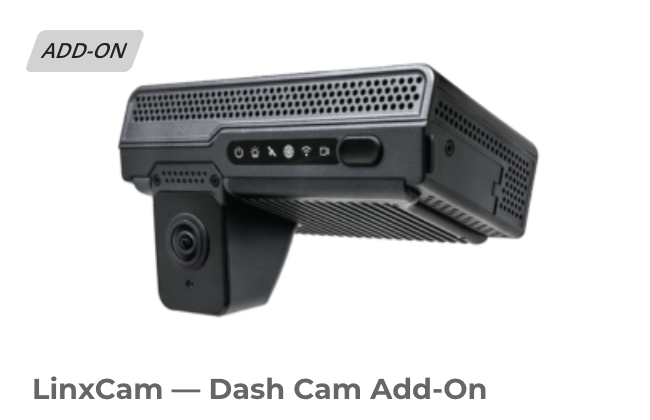

FleetSharp Dash Cam Add-on
FleetSharp’s dash cams help by providing video proof of driver actions and road conditions that have a direct effect on a company’s bottom line.
Safeguard your fleet with motion detector LED floodlights and unique 24-hour monitoring even when vehicles are parked. These dash cams are easy to install and fully integrate with your existing FleetSharp plug-in GPS trackers.
- Requires FleetSharp plug-in tracker
- One mount included per Dash Cam.
- Adding a Steep Mount will automatically reduce Standard Mount quality.
- Easy to install
